Enhanced Imagery Streaming (Beta)

Enhanced Imagery Streaming is a beta, limited release, Vantor Hub capability that enables users to stream Vantor satellite imagery with High Definition (HD), Atmospheric Compensation (AComp), and WorldView Terrain. It includes current and limited historic archive source imagery, such as GeoEye-01, WorldView-2, WorldView-3, and WorldView Legion. Enhanced HD Streaming combines Vantor's HD and AComp processing to offer optimal clarity and acutance for streaming up to 15 cm HD content.

Enhanced Imagery Streaming is a limited release. Enhanced Imagery Streaming is only available for images newer than October 2023. Enhanced Accuracy Streaming coverage (3m CE90 absolute and 1.5m CE90 co-registration) is limited to the WorldView Terrain DTM coverage area.

Enabling Enhanced Imagery Streaming

Select Enhanced Imagery Streaming .
By default, Enhanced Imagery Streaming is available for zoom levels greater than 19.
Toggling this icon enables Enhanced HD Streaming only.

Managing Enhanced Imagery Streaming Settings

Select Enhanced Imagery Streaming .
To change Enhanced Imagery Streaming settings, select Settings .
- Enable Enhanced Accuracy Streaming Provides a single layer of Vantor Imagery with improved mapping accuracies of 3m CE90 absolute and 1.5m CE90 co-registration accuracy. All Enhanced Accuracy Streaming images are also processed with HD and AComp.
- Only enable Enhanced Streaming at zoom levels 19 and higher (recommended, on by default) Deselecting this setting allows Enhanced Imagery Streaming to load at zoom levels of less than 19. This may cause slower imagery loading times.

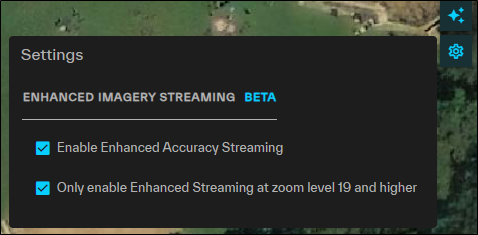

The Enhanced Imagery Streaming Settings window.

Viewing Enhanced Imagery Metadata

Select Enhanced Imagery Streaming .
Zoom to level 19 or higher. Imagery from Vantor's streaming catalog automatically populates.
Right-click on the image, then select View Enhanced Imagery Metadata. The Enhanced Imagery Metadata dialog opens.

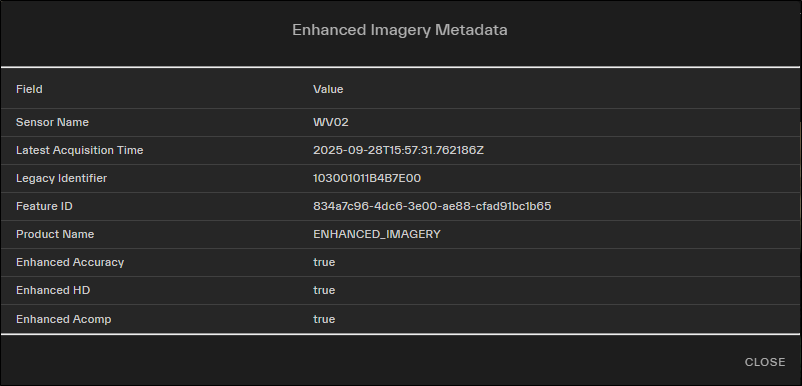

The Enhanced Imagery Metadata dialog.
