Ordering 3D Data

You can order 3D data from the 3D panel.

1. Select 3D. The 3D panel opens.

2. Select the 3D product you want to order.

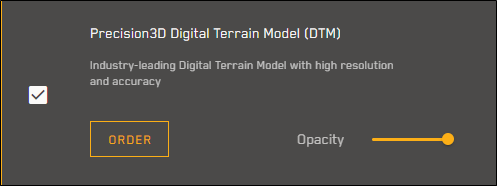

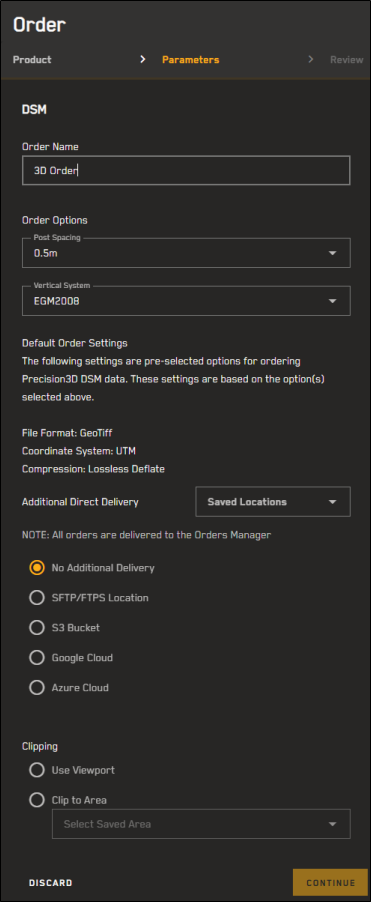

3. In the 3D panel, select Order. The Order wizard opens.

   The Order button does not display in the 3D panel until you select a 3D Product.



4. In the Order Name field, enter a name for the order.

5. Complete each section to define your order.

   Order Options and Default Order Settings

   Make selections to define your order.

   Expand the drop-downs below to view the order options and default order settings available for each 3D product.

   Precision3D Digital Terrain Model (DTM)

   The following order options and default order settings apply to the Precision3D Digital Terrain Model (DTM).

   Order Options	Available Settings
   Post Spacing	0.5 m (default) 1.0 m 2.0 m 4.0 m
   Vertical System	EGM2008 (default) EGM98 Ellipsoid

   Order Settings	Default
   File Format	GeoTiff
   Compression	Lossless Deflate
   Coordinate System	UTM

   Precision3D Digital Surface Model (DSM)

   The following order options and default order settings apply to the Precision3D Digital Surface Model (DSM).

   Order Options	Available Settings
   Post Spacing	0.5 m (default) 1.0 m 2.0 m 4.0 m
   Vertical System	EGM2008 (default) EGM98 Ellipsoid

   Order Settings	Default
   File Format	GeoTiff
   Compression	Lossless Deflate
   Coordinate System	UTM

   Elevation Bundle (DTM + DSM)

   The following order options and default order settings apply to the Elevation Bundle (DTM + DSM) product.

   Order Options	Available Settings
   Post Spacing	0.5 m (default) 1.0 m 2.0 m 4.0 m
   Vertical System	EGM2008 (default) EGM98 Ellipsoid

   Order Settings	Default
   File Format	GeoTiff
   Compression	Lossless Deflate
   Coordinate System	UTM

   Precision3D 3D Surface Model (3DSM)

   Default order settings for the Precision3D 3D Surface Model (3DSM) are dependent on the file format you select.

   FIle Format: 3D Tiles 1.1 (Cesium)

   Order Settings	Default
   Post Spacing	0.5 m
   Reference System	WGS84 G1674
   Coordinate System	Geocentric (ECEF)
   Vertical System	N/A

   FIle Format: Precision3D r3DB

   Order Settings	Default
   Post Spacing	0.5 m
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Vertical System	Ellipsoid

   FIle Format: Precision3D Collada

   Order Settings	Default
   Post Spacing	0.5 m
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Vertical System	Ellipsoid

   FIle Format: 13S 1.8 (ESRI)

   Order Settings	Default
   Post Spacing	0.5 m
   Reference System	WGS84 G1674
   Coordinate System	Geodetic
   Vertical System	EGM96

   Precision3D True Ortho

   The following default order settings apply to the Precision3D True Ortho product.

   Order Settings	Default
   Post Spacing	0.5 m
   File Format	GeoTiff
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Compression	Lossless Deflate

   3D Bundle (3DSM + DSM + True Ortho)

   The 3D Bundle contains three different products. Settings are pre-selected for each product included in the bundle, and are based on the file format you select.

   FIle Format: 3D Tiles 1.1 (Cesium)

   Order Settings	Precision3D 3D Surface Model (3DSM) Default	True Ortho Default	Precision3D Digital Surface Model (DSM) Default
   Post Spacing	0.5 m	0.5 m	0.5 m
   Reference System	WGS84 G1674	WGS84 G1674	WGS84 G1674
   Coordinate System	Geocentric (ECEF)	UTM	UTM
   Vertical System	N/A	N/A	EGM2008
   File Format	3D Tiles 1.1 (Cesium)	GeoTiff	GeoTiff

   FIle Format: Precision3D R3DB

   Order Settings	Precision3D 3D Surface Model (3DSM) Default	True Ortho Default	Precision3D Digital Surface Model (DSM) Default
   Post Spacing	0.5 m	0.5 m	0.5 m
   Reference System	WGS84 G1674	WGS84 G1674	WGS84 G1674
   Coordinate System	UTM	UTM	UTM
   Vertical System	Ellipsoid	N/A	Ellipsoid
   File Format	Precision3D R3DB	GeoTiff	GeoTiff

   FIle Format: Precision3D Collada

   Order Settings	Precision3D 3D Surface Model (3DSM) Default	True Ortho Default	Precision3D Digital Surface Model (DSM) Default
   Post Spacing	0.5 m	0.5 m	0.5 m
   Reference System	WGS84 G1674	WGS84 G1674	WGS84 G1674
   Coordinate System	UTM	UTM	UTM
   Vertical System	Ellipsoid	N/A	Ellipsoid
   File Format	Precision3D Collada	GeoTiff	GeoTiff

   FIle Format: 13S 1.8 (ESRI)

   Order Settings	Precision3D 3D Surface Model (3DSM) Default	True Ortho Default	Precision3D Digital Surface Model (DSM) Default
   Post Spacing	0.5 m	0.5 m	0.5 m
   Reference System	WGS84 G1674	WGS84 G1674	WGS84 G1674
   Coordinate System	Geodetic	UTM	UTM
   Vertical System	EGM96	N/A	EGM96
   File Format	13S 1.8 (ESRI)	GeoTiff	GeoTiff

   Precision3D Buildings

   The following order options and default order settings apply to Precision3D Buildings.

   Order Options	Available Settings
   Level of Detail	Non-height Segmented(default) Height Segmented
   Vertical System	EGM2008 (default) EGM98 Ellipsoid

   Order Settings	Default
   File Format	ESRI Shape
   Reference System	WGS84 G1674
   Coordinate System	UTM

   Precision3D Classification

   The following order options and default order settings apply to Precision3D Classification.

   Order Options	Available Settings
   Post Spacing	0.5 m (default) 1.0 m 2.0 m 4.0 m

   Order Settings	Default
   File Format	GeoTiff
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Compression	Lossless Deflate

   Precision3D DHM

   The following order options and default order settings apply to the Precision3D DHM.

   Order Options	Available Settings
   Post Spacing	0.5 m (default) 1.0 m 2.0 m 4.0 m
   Vertical System	EGM2008 (default) EGM98 Ellipsoid

   Order Settings	Default
   File Format	GeoTiff
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Compression	Lossless Deflate

   Precision3D Point Cloud

   The following order options and default order settings apply to the Precision3D Point Cloud.

   Order Options	Available Settings
   Vertical System	EGM2008 (default) EGM98 Ellipsoid
   File Format	LAZ (default) LAS

   Order Settings	Default
   Sampling Density	4 Points/m2
   Reference System	WGS84 G1674
   Coordinate System	UTM

   Precision3D Vegetation

   The following order options and default order settings apply to Precision3D Vegetation.

   Order Options	Available Settings
   Cut by Building Vectors	True (default) False
   Vertical System	EGM2008 (default) EGM98 Ellipsoid
   Vegetation Representation	Stacked (default) Non-stacked

   Order Settings	Default
   File Format	ESRI Shape
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Vertical Threshold	2 m

   Rapid3d On-demand Suite

   Order options and default order settings for the Rapid3D On-Demand Suite are dependent on the On-Demand Product you select.

   Product: DSM

   Order Options	Available Settings
   Vertical System	Ellipsoid (default) EGM98 EGM2008
   Fill Shadows	True (default) False

   Order Settings	Default
   Post Spacing	0.5 m
   File Format	GeoTIFF
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Compression	Deflate

   Product: 3DSM

   Order Options	Available Settings
   Fill Shadows	True (default) False

   Order Settings	Default
   File Format	3DTiles 1.1
   Reference System	WGS84 G1762
   Coordinate System	Geocentric (ECEF)

   Product: Bundle


   The Rapid3D Bundle delivers Rapid3D 3DSM, Rapid 3DDSM, and Rapid3D True Ortho. Rapid3D 3DSM and Rapid3D DSM are delivered with the order settings above, while Rapid3D True Ortho delivers with the order settings below.

   Order Options	Available Settings
   Fill Shadows	True (default) False

   Order Settings	Default
   Post Spacing	0.5 m
   File Format	GeoTIFF
   Reference System	WGS84 G1674
   Coordinate System	UTM
   Compression	Deflate

   More Information: Definitions

   • Compression The compression option for packaging files.

   • Coordinate System The projection type, which defines how satellite imagery is mapped to the earth.

   • File Format The output format for image delivery.

   • Post Spacing The distance between points on the elevation grid.

   • Reference System A global datum, used for determining positions on the Earth's surface.

   • Vertical System The vertical coordinate system to define the origin of the height.

   Additional Direct Delivery

   By default, all orders are delivered to the Orders Manager.

   If you want to send your order to an additional file transfer location, select your desired location.

   Options

   • No Additional Delivery (Default)

   • STFP/FTPS Location

     1. (Optional) If you want to use a previously saved location for the order, select it from the Saved Locations drop-down.

     2. Select your protocol, then enter your credentials, host, port, and directory.

     3. To verify the connection, select Test Connection.

        A successful connection test is required to save the location and to order the image.

     4. (Optional) To save the location to use again later, select Save as Location. The location is added to the Saved Locations drop-down.

   • S3 Bucket

     1. (Optional) If you want to use a previously saved location for the order, select it from the Saved Locations drop-down.

     2. Enter your S3 bucket, folder, region, IAM access key, secret access key, and optional session token.

        • Use the Session Token field if you have a temporary STS token.

        • For regular access keys, leave the Session Token field blank.

        Your S3 bucket must be in the AWS commercial cloud.

     3. To verify the connection, select Test Connection.

        A successful connection test is required to save the location and to order the image.

     4. (Optional) To save the location to use again later, select Save as Location. The location is added to the Saved Locations drop-down.

   • Google Cloud

     1. (Optional) If you want to use a previously saved location for the order, select it from the Saved Locations drop-down.

     2. Enter your service key, bucket, and folder.

        To select a service key from a location on your computer, select the paperclip .

     3. To verify the connection, select Test Connection.

        A successful connection test is required to save the location and to order the image.

     4. (Optional) To save the location to use again later, select Save as Location. The location is added to the Saved Locations drop-down.

   • Azure Cloud

     1. (Optional) If you want to use a previously saved location for the order, select it from the Saved Locations drop-down.

     2. Enter your connection string, bucket, and folder.

     3. To verify the connection, select Test Connection.

        A successful connection test is required to save the location and to order the image.

     4. (Optional) To save the location to use again later, select Save as Location. The location is added to the Saved Locations drop-down.

   • Saved Location

     • (Optional) If you want to use a previously saved location for the order, select it from the Saved Locations drop-down.

   Clipping

   • Select how you would like to clip the ordered area.

     Options

     • Full Image Strip (No Clipping) (Default)

       • To zoom to the extent of the image, select See Full Image.

     • Use Viewport

       • To draw an AOI for the current viewport, select Re-Define.

       • To automatically zoom to the largest allowable clipped area, select Max Fit.

       • To automatically zoom to the smallest allowable clipped area, select Min Fit.

         Min Fit and Max Fit create areas based on center of the current viewport. Use the Re-Define, zoom and pan, and search tools to roughly select your desired location before using either of these zoom options.

     • Clip to Area

       • Select a saved area from the drop-down.Select a saved area from the drop-down or enter a search term.

         The search drop-down displays up to 25 saved areas. Selecting an area draws the AOI on the map and recalculates the order price for the selected area.

         If you try to place an order using an area that intersects with a georestricted location, you will receive an error.

   The estimated clipping area (in sq km) displays below the Clipping section, and updates when you make a selection.

   When ordering analytics data, the clipped area must be smaller than 10,000 sq km.

   When ordering Precision 3D imagery, the clipped area must be larger than 0.1 sq km and smaller than 500,000 sq km.

   When ordering imagery, the clipped area must be smaller than 500,000 sq km.

   When ordering Vivid imagery, the clipped area must be larger than 0.1 sq km and smaller than 500,000 sq km.

   Select Min Fit or Max Fit to automatically zoom to an AOI that fits the smallest (min) or largest (max) allowable clipped area.

   Vivid products do not have full coverage. If there is not Vivid basemap coverage in your defined area, an error displays, alerting you that there is no content in the area. You will not be charged for an area where there is no coverage.

   Likewise, if there is only partial Vivid coverage over your defined area, you will only be charged for the areas where there is coverage.



   In this image, there are four small Vivid coverage areas, despite a large clipping area selection. As shown in the legend, only the four Vivid coverage areas are included in the order.

   Use the legend to identify the clipping area included in your order. This area may change as you select different clipping options.





   This image shows the order clipped to image strip...



   then re-defined and clipped to the viewport...



   and finally, clipped to the area.

   Price

   As you make and update order selections, the Price section displays a real-time quote. The charge is determined by the credit rate (credit cost per unit), multiplied by the number of units (in this case, sq km) in your clipped area.

   • Review the quote.

   In these two images, the clipping area affects the total charge because the number of units (sq km) has changed.



   This order is based on the Max Fit of the viewport, and costs 2920392.22 credits.



   This order is based on the Min Fit of the viewport, and costs 0.65 credits.

   Note that rates shown here are for illustrative purposes only. They are not applicable to all imagery products, and they may not reflect rates in your instance of MGP Pro.

6. Select Continue.

   Additional Steps for Rapid3D On-Demand Products only

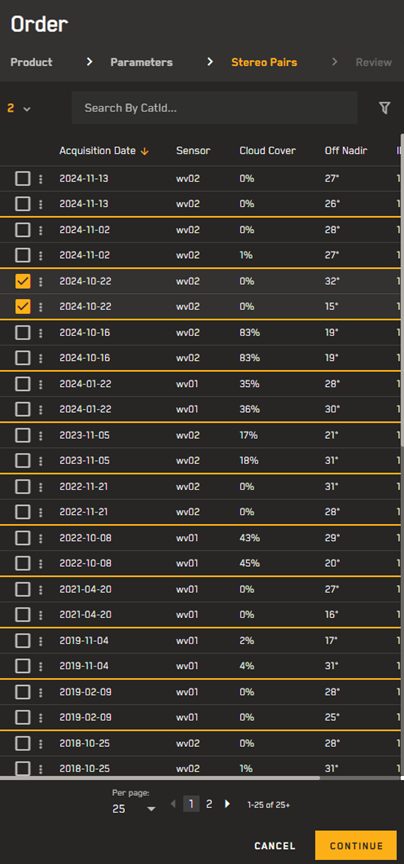

   1. Select the appropriate Stereo Pairs from the Archive Imagery Catalog for your order.

      Only Imagery from WV01, WV02, and WV03 are currently supported.



   2. Select Continue.

7. In the confirmation dialog, check that the order looks correct, then select Place Order.

8. After placing the order, a final confirmation displays your order ID, order name, order date, your order's options, and the total number of credits charged. Select Place Order to finish placing your order or Cancel to make edits.

   Track an order's status and download completed orders in the Orders panel. Orders expire after two weeks. See Orders.

   After you submit your order, you will receive a confirmation email. You will also receive an email when the order succeeds or fails.



   An example of an order status email.
