Viewing Vivid Basemaps
You can view Vivid basemaps in MGP Pro. When Vivid basemaps are turned on, they display on top of the standard basemap and under any imagery that you have selected in the Imagery panel.
The Vivid Standard 30 cm basemap over Cape Cod, Massachusetts.
Toggling Vivid Basemaps
Vivid basemaps are off by default. If you want to turn on Vivid basemaps, select the Vivid visibility icon.
 | |
 |
If Vivid basemaps are hidden, selecting a Vivid basemap automatically displays it in the viewport. Likewise, clearing your Vivid selection automatically hides the basemap.
Vivid Standard 30 cm HD is the default Vivid product.
When you select a different Vivid basemap, MGP Pro will default to that basemap the next time you open the Vivid panel.
Selecting a Vivid Basemap
When you turn on Vivid, you will see the Vivid Standard 30 cm HD basemap by default. You can select a different basemap in the Vivid panel.
Select Vivid. The Vivid panel opens.
Select the Vivid basemap you want to use. The viewport refreshes to apply the new Vivid basemap.
If Vivid basemaps are hidden, selecting a Vivid basemap automatically displays it in the viewport. Likewise, clearing your Vivid selection automatically hides the basemap.
To see more information about any
.
Available BasemapsName GSD CE90 Accuracy Refresh Coverage Areas 15 cm HD 5 m Yearly Global high-interest areas, with a focus on population, change, and infrastructure (default)
30 cm HD 5 m Yearly Global landmass, excluding Greenland and Antarctica Name GSD CE90 Accuracy 15 cm HD 5 m (default)
30 cm HD 5 m Vivid Advanced uses a very low-resolution source image for zoom levels 11–13, which results in lower clarity than other Vivid basemaps at those zoom levels. We are aware of the impact to the user experience, and we are working on a fix to provide a more consistent progression of image resolution as users move through zoom levels.
(Optional) Adjust the selected basemap's opacity using the Opacity slider.
To close the Vivid panel, select Vivid again.
Viewing Vivid Cutlines
Turn on Vivid cutlines to view an overlay of the mosaic imagery segments that make up the Vivid basemap.
Vivid Standard 30 cm HD cutlines over Denver, Colorado.
Select a Vivid basemap.
Zoom to level 8 or higher.
To turn on cutlines, select the cutlines icon
.
Cutlines On / Visible Cutlines Off / Hidden (Optional) To view Vivid metadata, select a cutline area. A popup displays the block name, acquisition time (UTC), sensor, and archive catalog ID.

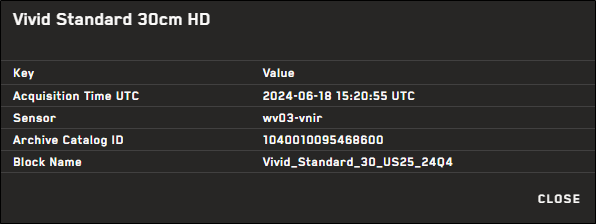

An example of Vivid Standard 30 cm metadata.
Vivid cutlines display at zoom level 8.
Imagery strips display at zoom level 11. Imagery displays on top of the Vivid basemap.
If you want to see Vivid cutlines at zoom level 11 or higher, be sure to turn imagery off . If imagery is turned on , it will hide the cutlines.
