Viewing Imagery
Use the Imagery panel to select the imagery you want to view in the map viewport.
The Imagery panel is open by default. Imagery appears at zoom level 11 and above.
To view imagery in MGP Pro, you must be sure that:
The Imagery panel is open
You are zoomed in to Level 11 or higher
Imagery is visible
Toggling Imagery
Imagery is on by default. If you want to hide all imagery, select the Imagery visibility icon.
| |
 |
Hiding imagery will turn off all imagery in the viewport, regardless of the current lock state. When hidden , imagery still displays in the Imagery panel, but it does not display on the map.

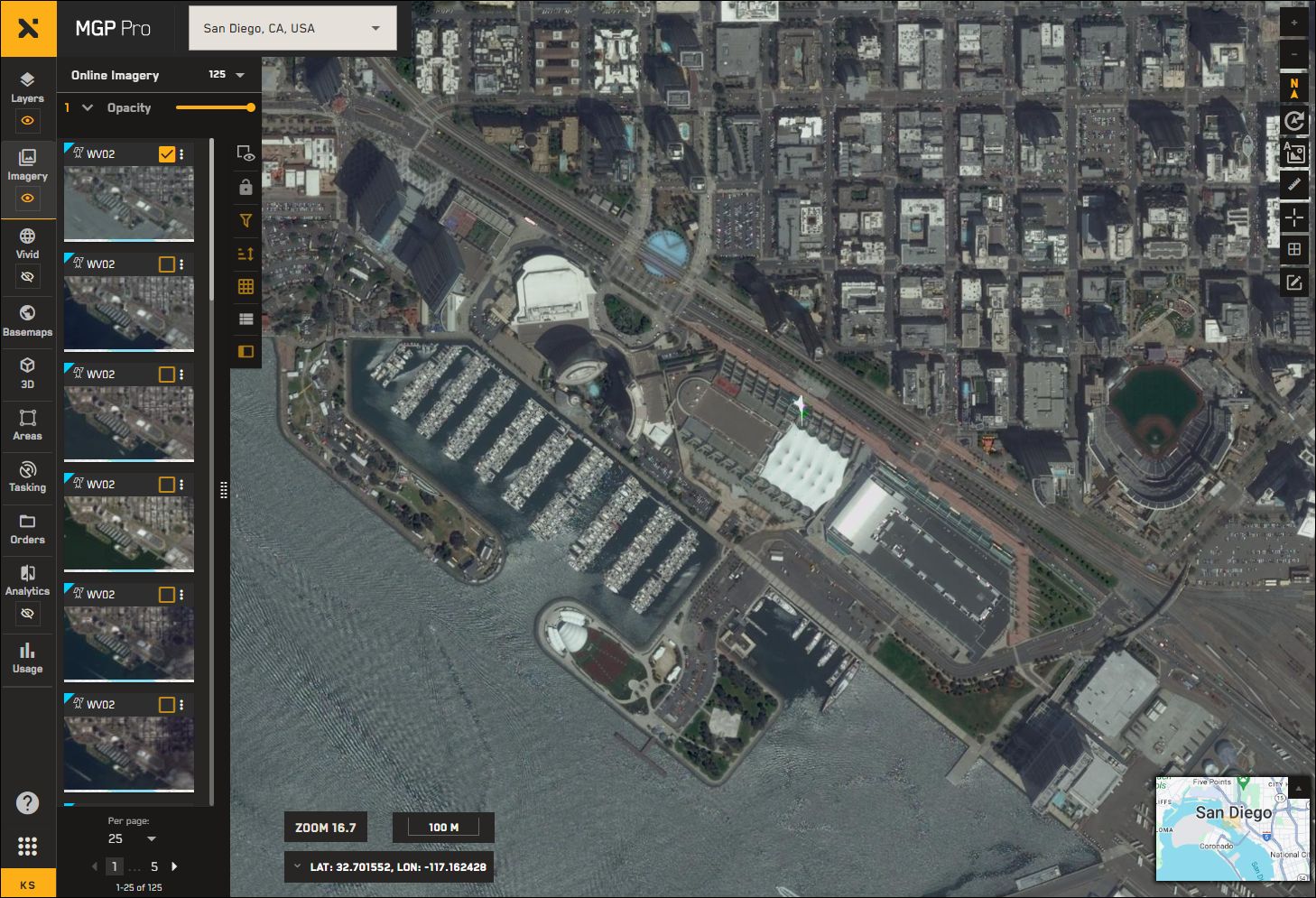

Using the Imagery Panel
Select Imagery. The Imagery panel opens.
Locate the area on the map where you want to view imagery, then zoom to Level 11 or higher.
When you reach zoom level 11, imagery populates in the viewport and loads in the Imagery panel, sorted chronologically from newest to oldest.
You can see your current zoom level at the bottom of the MGP Pro interface. If you are not zoomed in enough to view imagery, an alert displays in the Imagery panel.
If you are at a close enough zoom level and imagery still does not appear in the Imagery panel, check to make sure the Imagery panel is visible
.
Why Do I Not See Imagery?Imagery will not populate if:
You are not at zoom level 11 or higher.
To resolve this issue, zoom in using your mouse or the zoom in buttons in the interface. See Zooming and Panning.
The Imagery panel has been turned off
, either manually or automatically. To resolve this issue, turn the Imagery panel back on
.The Imagery panel has been locked
, either manually or automatically. This will prevent new imagery from loading over an area.To resolve this issue, unlock
the Imagery panel. If you area zoomed in to level 11 or higher, new imagery will now load over the area. See Locking and Unlocking the Imagery Panel.Filters are turned on
and are filtering out some or all of the available imagery in an area.To resolve this issue, open the Filters panel and change your filter settings. See Filtering Imagery.
A georestriction is in effect over the area.
To resolve this issue, check your georestrictions by turning on the Georestrictions map overlay
. If red, dotted, diagonal lines appear over the area, you are in a georestricted location. Try viewing imagery in an unrestricted area. See Working Within a Georestriction.You are restricted from viewing imagery at certain zoom levels.
If you would like to know more, please contact support@maxar.com.
Viewing Private Imagery
Archive images ordered via Ingest to Streaming are marked as Private and can be discovered and streamed in MGP Pro by users on the same MGP Pro account. See Ordering Archive Imagery.
Ingest to Streaming is only available for Map Ready (3D) and View Ready (2A) imagery.
You can easily identify private imagery in the Imagery panel because it is marked with a blue shield icon.
Select Imagery. The Imagery panel opens.
Locate the area on the map where you want to view imagery, then zoom to Level 11 or higher.
(Optional) Use imagery filters to filter for private imagery. See Filtering Imagery.
Locate a private image. Private images are marked with a blue shield.
More Information about Imagery
The Imagery panel is open by default. To close the Imagery panel, select Imagery again.
If you have reached your credit limit, and you try to view imagery, an error alerts you to contact your account administrator.
When using card view at lower zoom levels (13.9 – 11), the Imagery panel displays a metadata overlay. You will see thumbnails when you zoom in to level 14 or higher. See Card View Below Zoom Level 14: Imagery Metadata.
Vivid basemaps are not considered "imagery," so you can still view Vivid basemaps when the Imagery panel is turned off.
Likewise, you can hide Vivid basemaps and still see imagery that you have selected in the Imagery panel. See Viewing Vivid Basemaps.
Archive imagery displays in reduced resolution.
